Hertz X 130 Uno Series 5" 160w 40rms 2way Speakers - Car Audio

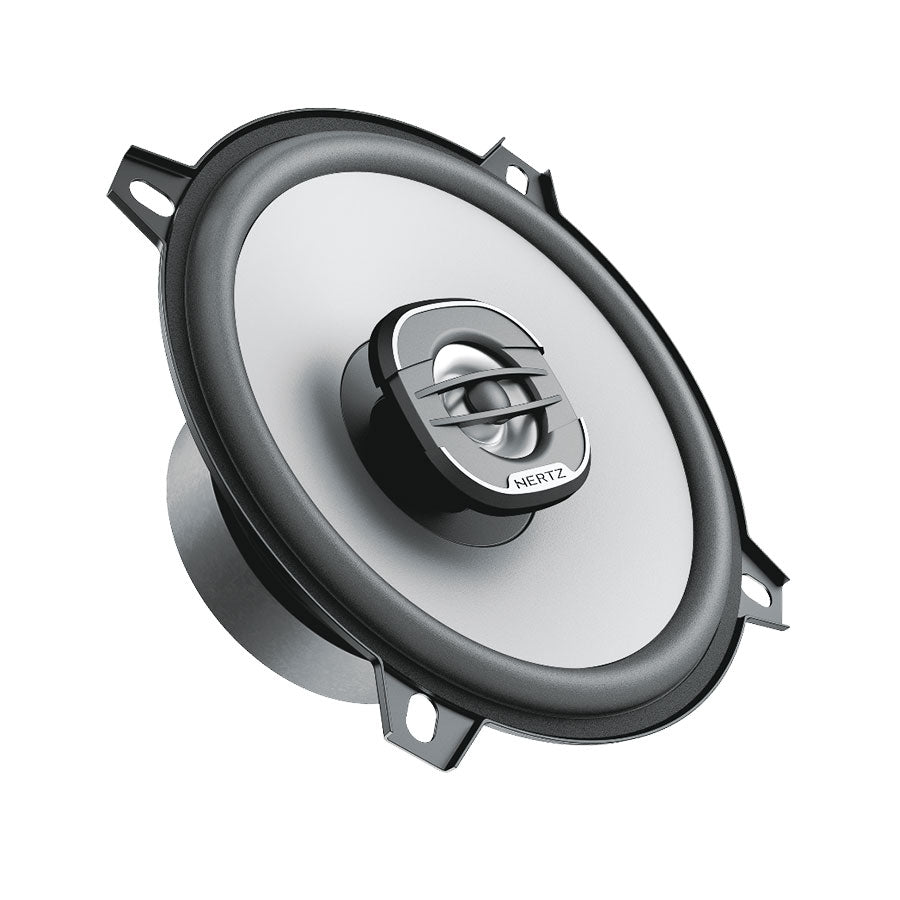

Hertz X 130 Uno Series 5" 160w 40rms 2way Speakers
The 5" two way coaxials X 130 features a special designed tweeter faceplate optimized for exceptional off-axis performance to ensure a linear frequency response when installed in a factory replacement setup. The pressed-paper cone treated with water-repellent along with the foam surround provide a very high SPL and extended low frequency response, to obtain a rich sound even when driven by the OEM head unit.
The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The easy-to-install DIN size basket, protected by an abrasion-resistant dust paint, makes the factory speakers replacement a snap.
Component Coaxials
Size mm (in.) 130 (5)
Power Handling - Continuous W 40
Power Handling - Peak W 160
Impedance Ohm 4
Tweeter diaphragm mm (in.) 24 (0.9)
Woofer Voice Coil Ø mm (in.) 25 (1)
Tweeter Voice Coil Ø mm (in.) 14 (0.55)
Frequency Response Hz 60 ÷ 21k
Woofer Magnet size D x d x h mm (in.) 70 x 32 x 15 (2.76 x 1.26 x 0.59)
Tweeter Magnet size D x h mm (in.) 13 x 1,5 (0.51 x 0.06)
Weight of one speaker kg (lb.) 0,56 (1.23)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Water-repellent pressed paper
Dome PEI
Xmech mm (in.) ±3,5 (0.14)
